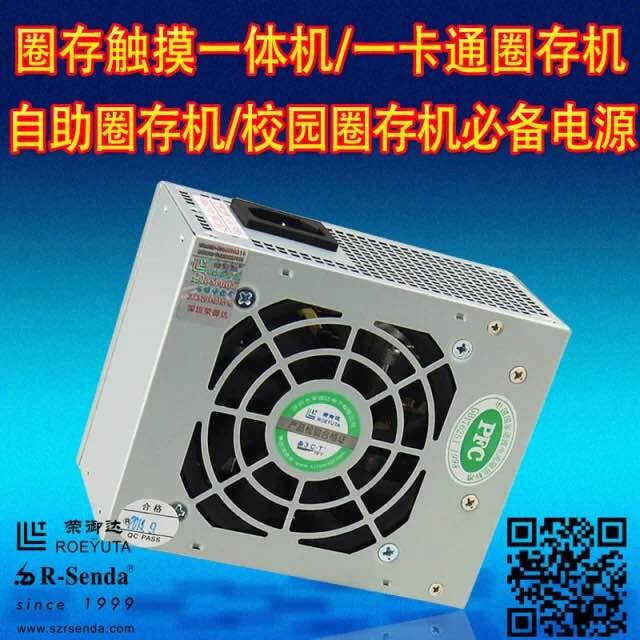

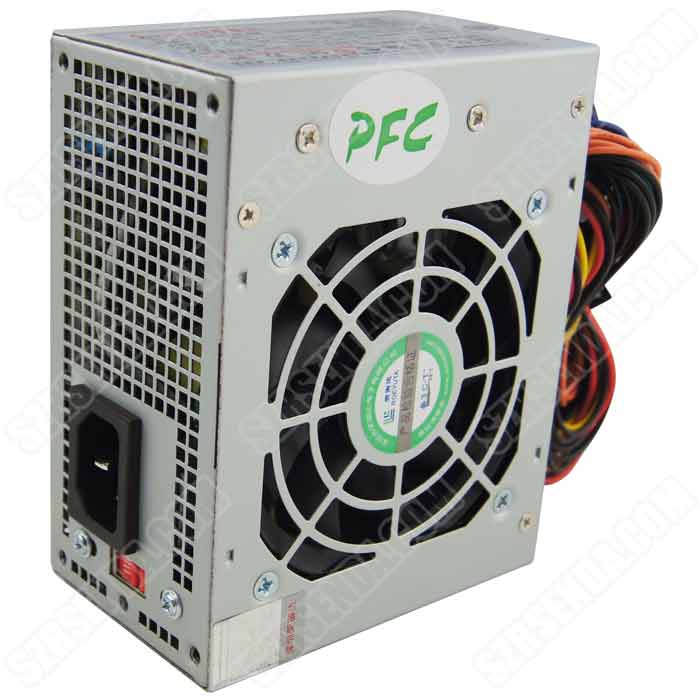

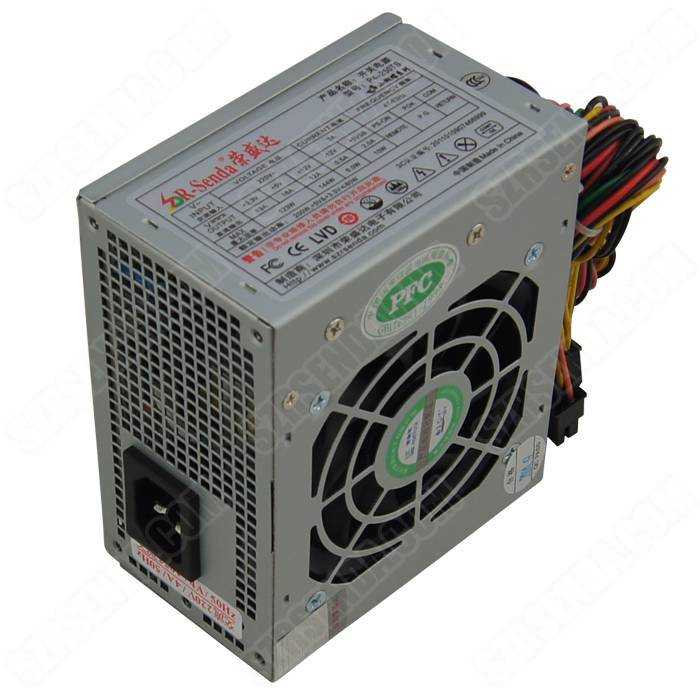

P4-250TS

Hi, how can I help you?Chat Now!

  • Model Number：  P4-250TS
  • Rated Power：  200W
  • Application：  Desktop, Brand machine, etc.
  • Fan Type：  8cm
  • Power Factor：  Passive PFC
  • Input Voltage：  115/230VAC
  • Dimention：  125x100x63.5mm
  • Packaging Details：  10 PCS/CTN
  • Carton Dimention：  350x300x145mm

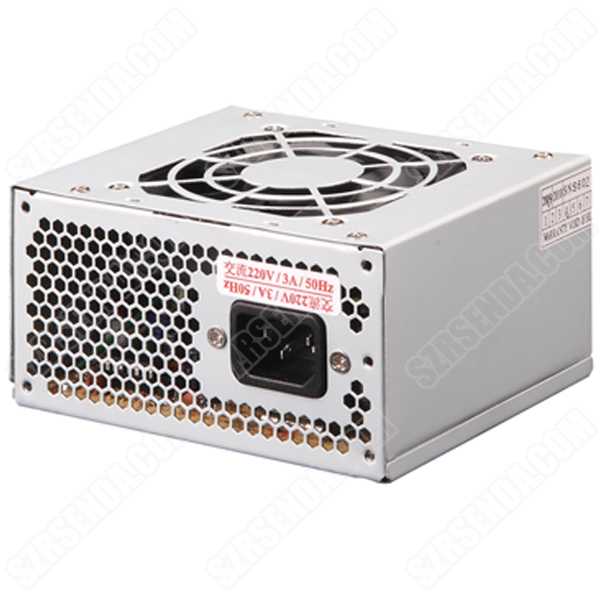

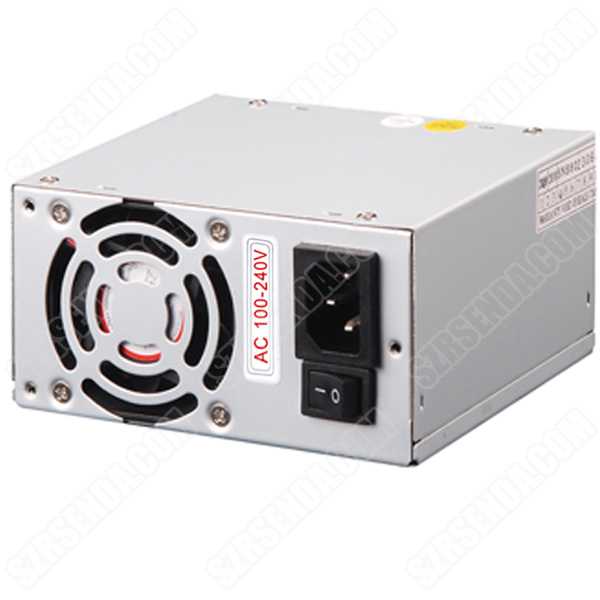

10 Other Products in the same category

Product Features

*Comply with SFX 12V Ver2.01, Rated output power: 200W (300W Max)
* With 8cm fan
* Build in EMI
* High efficiency
* Low ripple & noise
* Output over voltage protection
* Short circuitprotection on all outputs
* 100% Hi-pot tested
* 100% burn-in underhigh ambient temperature(45°C)
*Life Cycle:≥10K hours
* Connectors: 20+4Pin for M/B,4pin for 12VCPU,SATA*2,4Pin for HDD*3

Product Details

Connector
    • Motherboard cable (20+4-Pin) x 1
    • CPU power Cable (works as either 4 or 8-Pin) x 1
    • 4-Pin peripheral cable x 2
    • SATA cable x 2
    • Floppy power adapter cable x 1

    • Motherboard Cable

      20+4-Pin*1

    • CPU power Cable

      4-Pin*1

    • HDD power Cable

      SATA*2

    • HDD power Cable

      4-Pin*2\4-Pin*1

Parameters
  • AC Input: 115/230Vac，3A，47-63Hz
    DC Output:
    • +3.3V(Orange):
    • 13A
    • +5V(Red):
    • 16A
    • +12V1(Yellow):
    • 12A
    • -12V(Blue):
    • 0.5A
    • +5VSB(Purple):
    • 2.0A
    • -5V(White):
    • -A
    Output power: Max Power：300W，Rated Power：200W
Parameters
    • PFC: Passive
    • Protection function： OVP， OPP， SCP
    • Cooling system: SPEED: 2500RMP(+/-10%)
      TEMP.AUTO ONTROL 1129rpm at 41.7℃~2300rpm at 60.5℃

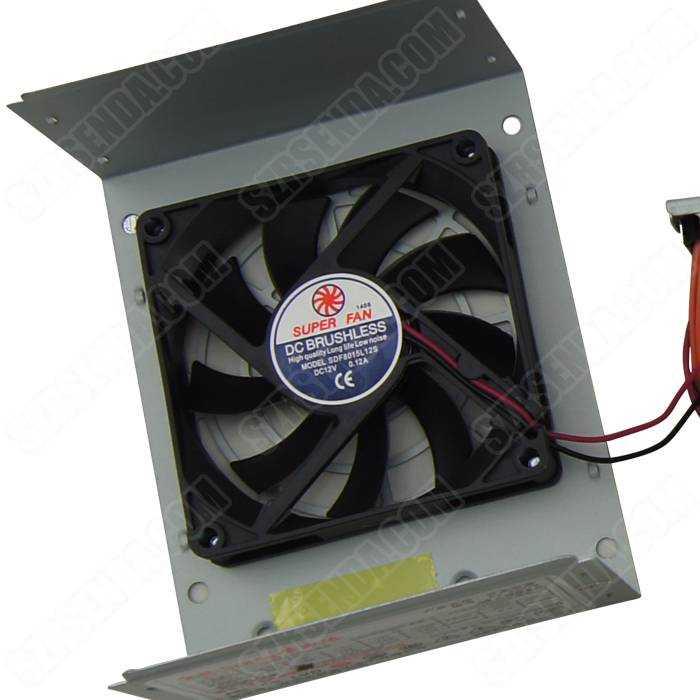

      8CM Fan
    • Noise: 22dB at 2500rpm
    • P.G signal: 100-500ms
    • Keep time: 17ms(min)
    • Conversion efficiency：75%
    • MTBF：100000 hours
    • Working temperature：0-50℃
Accessories
    • Packing list：
      Power Supply x1
      Power line x1

Dimensions
  • P4-250TS
