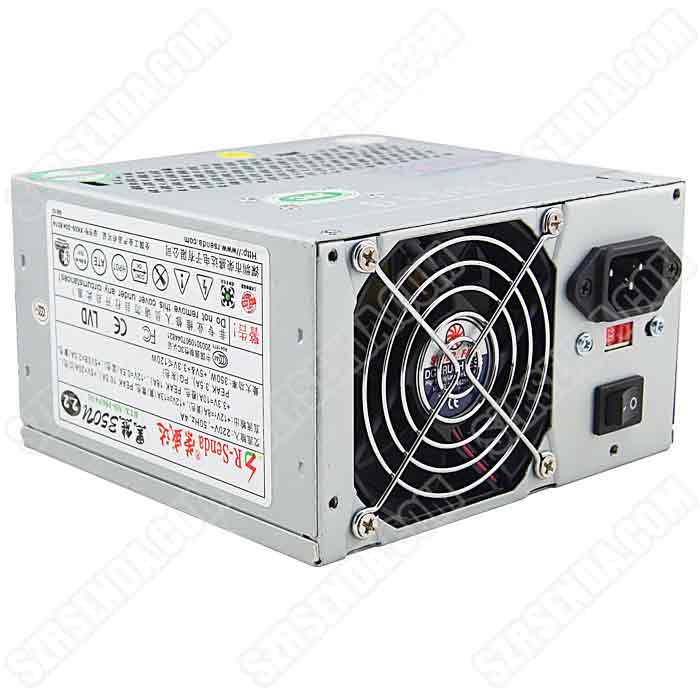

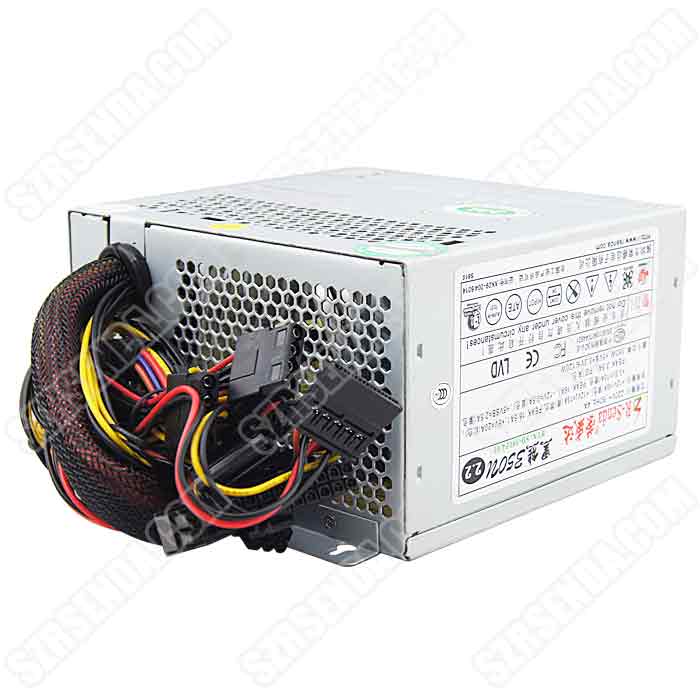

SD-350TU

Hi, how can I help you?Chat Now!

  • Model Number：   SD-350TU
  • Rated Power：   250W
  • Application：  Desktop,ect.
  • Fan Type：  8cm
  • Power Factor：  Passive PFC
  • Input Voltage：  220Vac
  • High efficiency：  75%
  • Dimention：  150x86x140mm
  • Packaging Details：  10pcs/ctn
  • Carton Dimention：  622x457x215mm

10 Other Products in the same category

Product Features

*Comply with ATX 12V Ver2.3,rated output power: 250W (350W Max)
*Support Dual Core CPU technology
*Dual + 12V output circuits（12V1，12V2）
*High efficiency
*Low ripple & noise
*Output over voltage protection
*Short circuit protection on all outputs

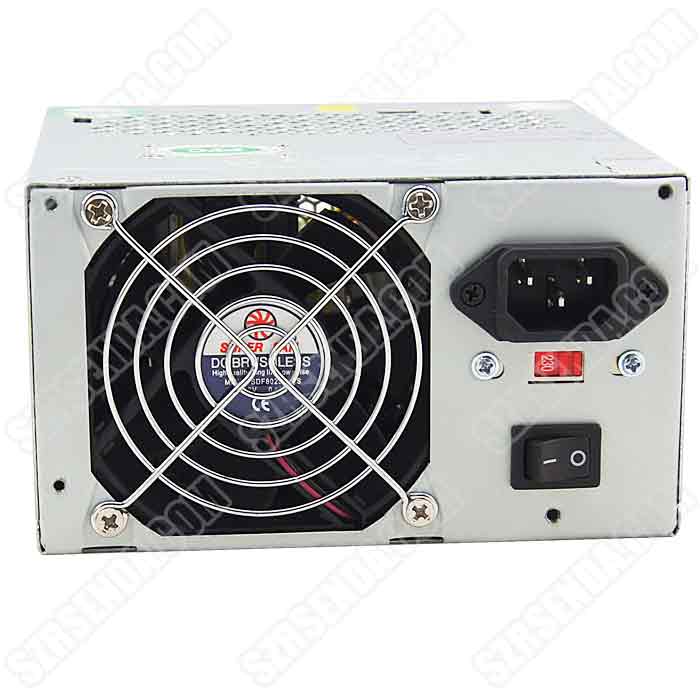

*Internal 8cm fan for good cooling
*100% Hi-pot tested
*100% burn-in under high ambient temperature(50C)
*MTBF:80K hours at 25°C
*Life Cycle:≥80k hours
* Connectors: 20+4Pin for M/B,4+4pin for 12VCPU*2,6pin for 12V CPU,,SATA*2,4Pin for HDD*4

Product Details

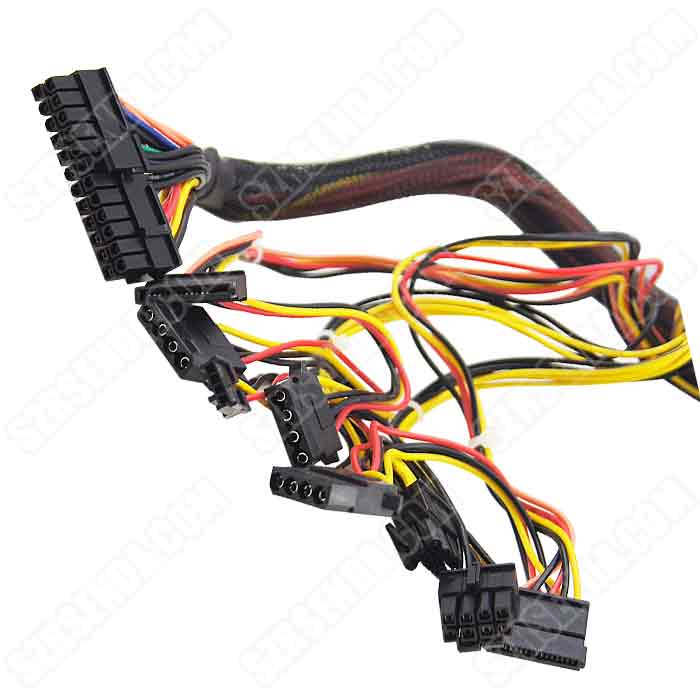

Connector
    • Motherboard cable (20+4-Pin) x 1
    • CPU power Cable (4+4-Pin) x 1
    • PCIe 6-Pin (GPU) x 1
    • 4-Pin peripheral cable x 2
    • SATA cable x 3
    • Floppy power adapter cable x 1

    • Motherboard Cable

      20+4-Pin*1

    • CPU power Cable

      4+4-Pin*1

    • PCI-E

      6-Pin*1

    • HDD power Cable

      SATA*3

    • HDD power Cable

      4-Pin*2\4-Pin*1

Parameters
  • AC Input: 115/230Vac，3A，47-63Hz
    DC Output:
    • +3.3V(Orange):
    • 10A
    • +5V(Red):
    • 20A
    • +12V1(Yellow):
    • 18A
    • +12V2(Yellow):
    • 13A
    • -12V(Blue):
    • 0.5A
    • +5VSB(Purple):
    • 2.5A
    • -5V(White):
    • -A
    Output power: Max Power：350W，Rated Power：250W
Parameters
    • PFC type：Passive
    • Protection function： OVP， OPP， SCP
    • Cooling system: SPEED: 1800RMP(+/-10%)
      TEMP.AUTO ONTROL:1200rpm at 41℃~1800rpm at 60.5℃
      8CM fan
    • Noise: 19dB at 1500rpm
    • P.G signal: 100-500ms
    • Keep time: 17ms(min)
    • Conversion efficiency：75%
    • MTBF：100000 hours
    • Working temperature：0-50℃
Accessories
    • Packing list：
      Power Supply x1
      Power line x1
