RYT-500P

Chat Now!

Model Number： RYT-500P
Rated Power： 400W
Application： 3D printer
Fan Type： 12CM
Power Factor： Active PFC
Input Voltage： 100-240VAC
Outlet type： Module power supply
Dimention： 150x140x86mm
Packaging Details： 10pcs/ctn
Carton Dimention： 490x340x230mm
Product weight ： 2.1KG

10 Other Products in the same category

Product Features

*Comply with EPS12V Ver2.92
*Input voltage:90-264Vac
*High efficiency ,Certified by 80PLUS
*Low ripple and noise
*OVP/OCP/OPP/Shirt Circuit protection
*Auto switch
*Comply with the Intel Dual Core Nocona CPU
*Oil spout appearance
*Internal 14Cm FAN
*100% Hi-Pot tested
*100% burn-in under high ambient temperature (50'C)
*ACTIVE PFC circuit
*MTBF:100K hours at 25'C

Product Details

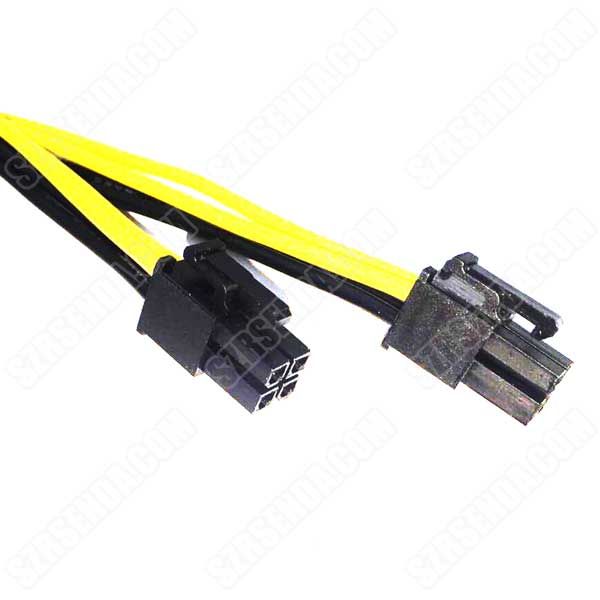

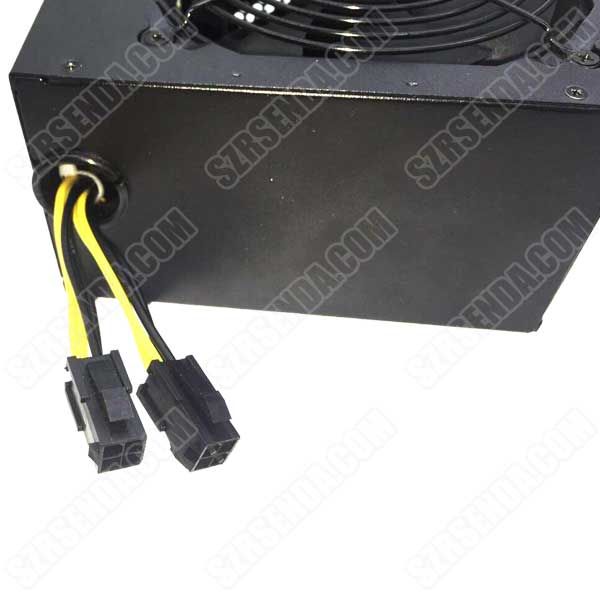

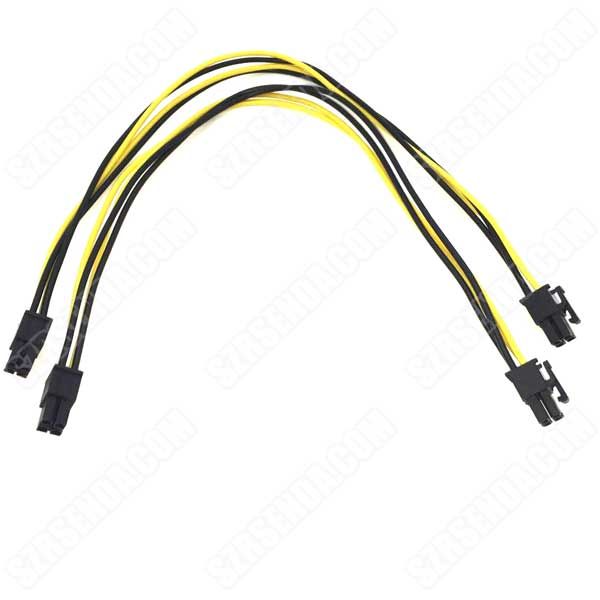

Connector	CPU power Cable (works as either 4 or 8-Pin) x 2 CPU power Cable 4-Pin1 CPU power Cable 4-Pin1
Parameters	AC Input: 100-240VAC，6-3A，47-63Hz DC Output: +12V1(Yellow): 33A Output power: Max Power：500W，Rated Power：400W
Parameters	PFC type：Active Protection function： OVP， OPP， SCP Cooling system: SPEED: 2200RMP(+/-10%) TEMP.AUTO ONTROL: 800rpm at 41.7cfm~2200rpm at 95.5cfm 14CM fan Noise: 22dB at 1800rpm P.G signal: 100-500ms Keep time: 17ms(min) Conversion efficiency：85% Safety certification：3C MTBF：100000 hours Working temperature：0-50℃
Accessories	Packing list： Power Supply x1 Power line x1
