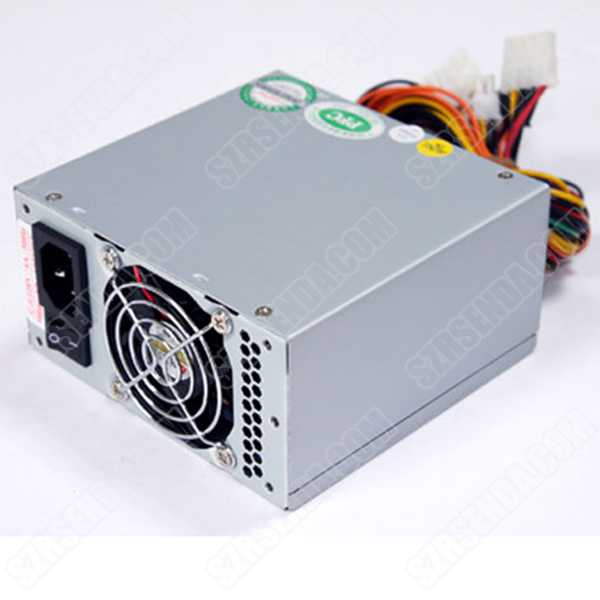

MICRO P4-450T

Hi, how can I help you?Chat Now!

  • Model Number：   P4-450T
  • Rated Power：   300W
  • Application：  Desktop, POS machine,All-in-one machine, Security equipment ect.
  • Fan Type：  6cm*2
  • Power Factor：  Passive PFC
  • Input Voltage：  115/230VAC
  • High efficiency：  75%
  • Dimention：  125x120x63.5mm
  • Packaging Details：  10pcs/ctn
  • Carton Dimention：  420x370x145mm

10 Other Products in the same category

Product Features

*Comply with SFX atx12V Ver2.2,rated output power: 300W (400W Max)
*Support Dual Core CPU technology
*High efficiency
*Low ripple & noise
*Output over voltage protection
*Short circuit protection on all outputs
*Internal 6CM*2 fan
*100% Hi-pot tested
*Built-in fan speed control, low noise
*100% burn-in under high ambient temperature(50C)
*MTBF:80K hours at 25°C
*Life Cycle:≥100k hours
* 20P+4P for M/B, 4pin+12V CPU, 4Pin for HDD×3, 4Pin for FDD, SATA Connector×3

Product Details

Connector
    • Motherboard cable (20+4-Pin) x 1
    • CPU power Cable (works as either 4 or 8-Pin) x 1
    • 4-Pin peripheral cable x 3
    • SATA cable x 3
    • Floppy power adapter cable x 1

    • Motherboard Cable

      20+4-Pin*1

    • CPU power Cable

      4-Pin*1

    • HDD power Cable

      SATA*3

    • HDD power Cable

      4-Pin*3\4-Pin*1

Parameters
  • AC Input: 115/230Vac，4A，47-63Hz
    DC Output:
    • +3.3V(Orange):
    • 14A
    • +5V(Red):
    • 25A
    • +12V1(Yellow):
    • 20A
    • -12V(Blue):
    • 0.5A
    • +5VSB(Purple):
    • 2.0A
    • -5V(White):
    • -A
    Output power: Max Power：450W，Rated Power：300W
Parameters
    • PFC: Passive
    • Protection function： OVP， OPP， SCP
    • Cooling system: SPEED: 2800RMP(+/-10%)
      TEMP.AUTO ONTROL:1129rpm at 41.7℃~1750rpm at 60.5℃
      6CM Fan*2
    • Noise: 22dB at 2600rpm
    • P.G signal: 100-500ms
    • Keep time: 17ms(min)
    • Conversion efficiency：75%
    • MTBF：100000 hours
    • Working temperature：0-50℃
Accessories
    • Packing list：
      Power Supply x1
      Power line x1
